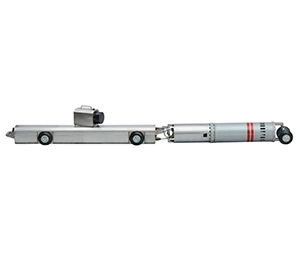

DTC-I X-ray Pipeline Crawler System consists of a Crawler, X-ray Generator, Tracking System, Communication Devices, and Battery Pack. An optional dual tracking system (magnetic and video) is also available for enhanced accuracy and easy operation. According to different applications, our Crawlers are suitable for pipelines with diameters of 219mm to 512mm or greater. The system is used for defects inspection and repair of natural gas pipelines, oil pipelines, urban water supply and drainage pipes, water pipes, and other pressure pipelines.
The system is suitable for welding joint inspection of long-distance pipelines and pressured pipelines, 360 degrees exposure greatly improves the inspection efficiency. When under optimum conditions, a maximum climbing angle of 40 ° can be achieved with a double drive system. The system complies with national standards.
Technical Specifications:
| Crawler Model | DTC-I |
| Pipelines | Thermal/Oil and Gas Pipeline |
| Pipe Diameter (mm) | 219 to 512 |
| X-ray Generator | 2005 (200kv) |
| Total Weight (kg) | ≤43 |
| Total Length (mm) | 1280 |
| Radiation Source | X-ray |
| Drive Mode | Single/Dual |
| Exposure (min) | 0-5 |
| Tracking System | Magnetic Tracking / Video Tracking |
| Tracking Accuracy (mm) | ±5 |
| Battery Type | Lead Acid / Lithium Battery |
| Battery Weight (kg) | 22 |
| Standards | GB/T9711.1-1997 / GB/T9711.2-1999 / GB/T 21237-2007 |
| Customizability | Both hardware and software are customizable |
